CNC Milling machine PMER type DPM

Type

DPM

Description - CNC Milling machine PMER type DPM

Denomination
CNC Milling machine
Travel X
780 mm
Travel Y
410 mm
Travel Z
550 mm
Numerical Command
ANILAM type 5000 M
Cone
ISO 40
Spindle exit
120 mm (manual)
Spindle speed
from 70 to 3800 RPM
Table size
1270 x 320 mm
Year of construction
2004
Maxi distance spindle nose/table
500 mm
Mini distance spindle nose/table
100 mm

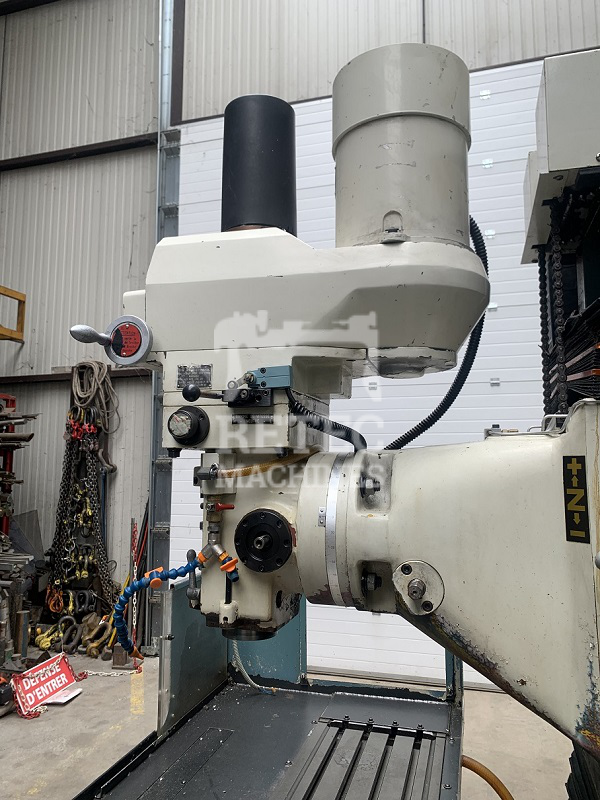

Head
Swivel head right/left
Various
Jog crank
Various
Possibility to work manually (with cranks)
Various
or driven by the CN
Equipped with

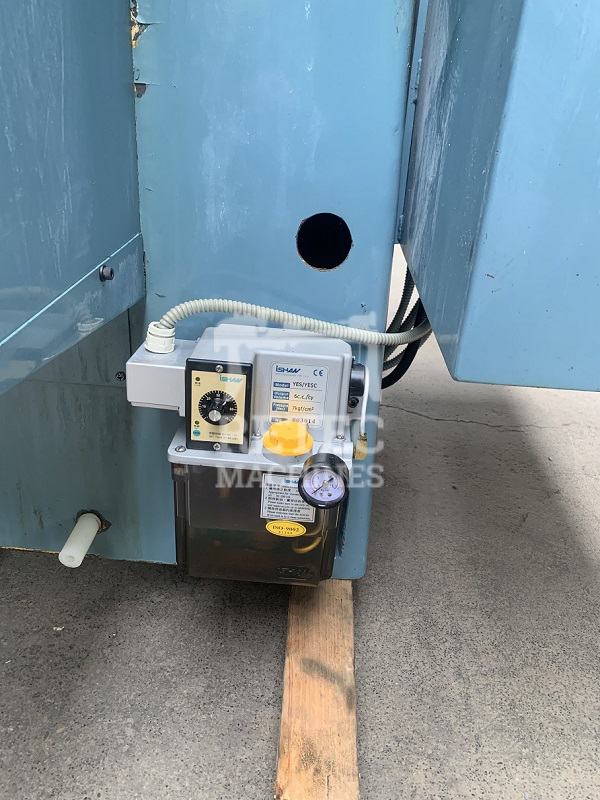

Lubricant pump
Voltage
380 V
Width
1900 mm
Depth
2100 mm
Total height
2500 mm
Weight
2,5 T

Vidéo

Photos Gallery

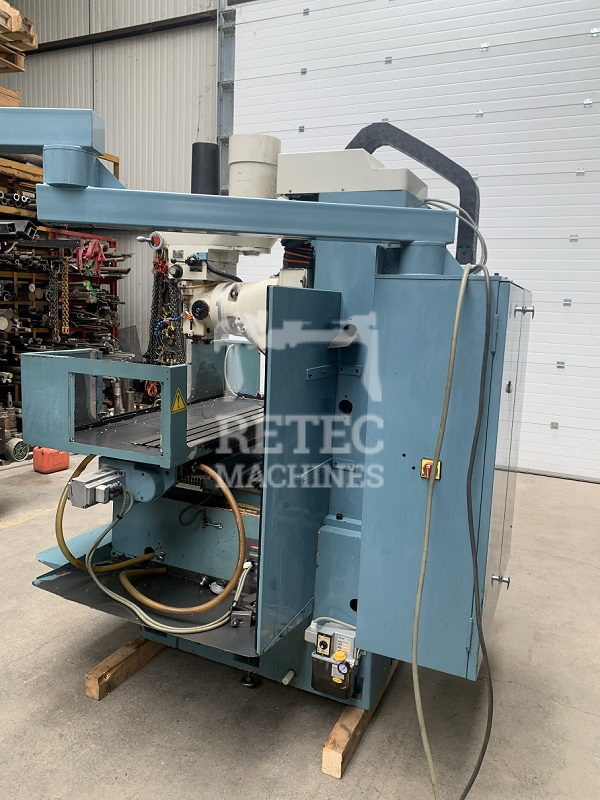

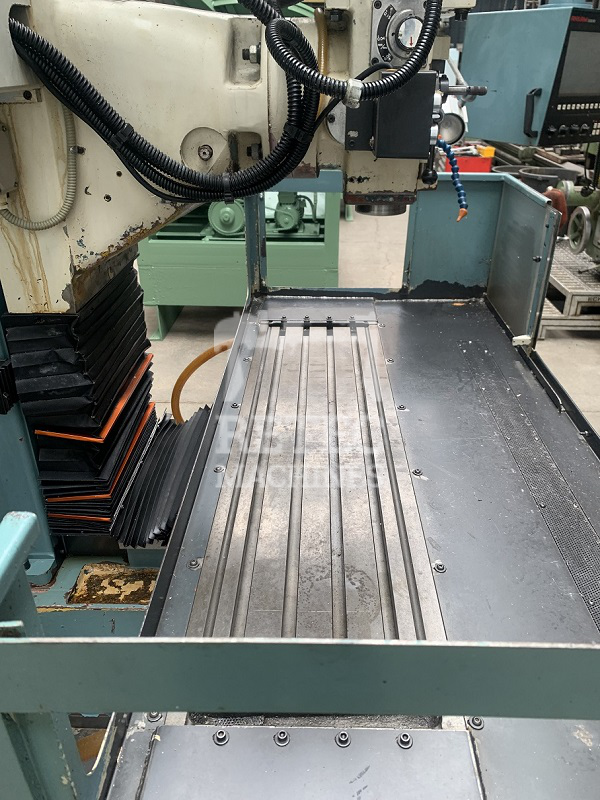

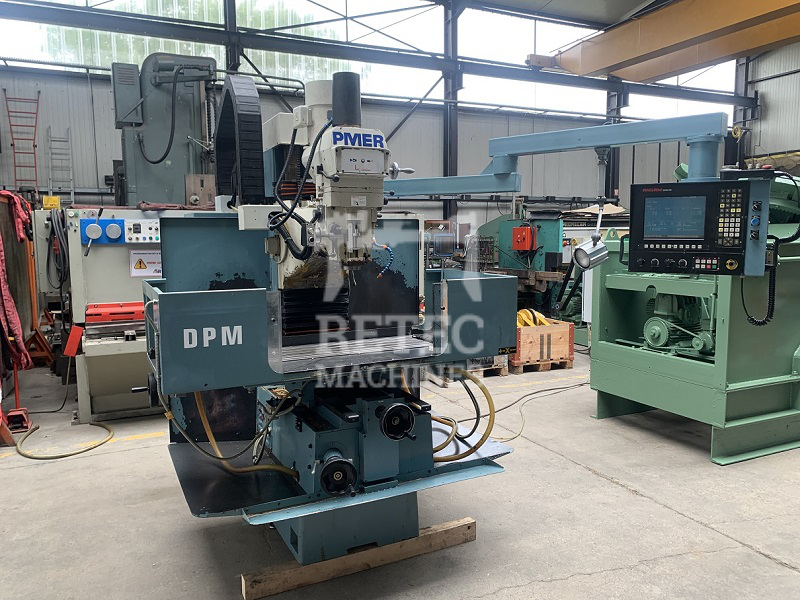

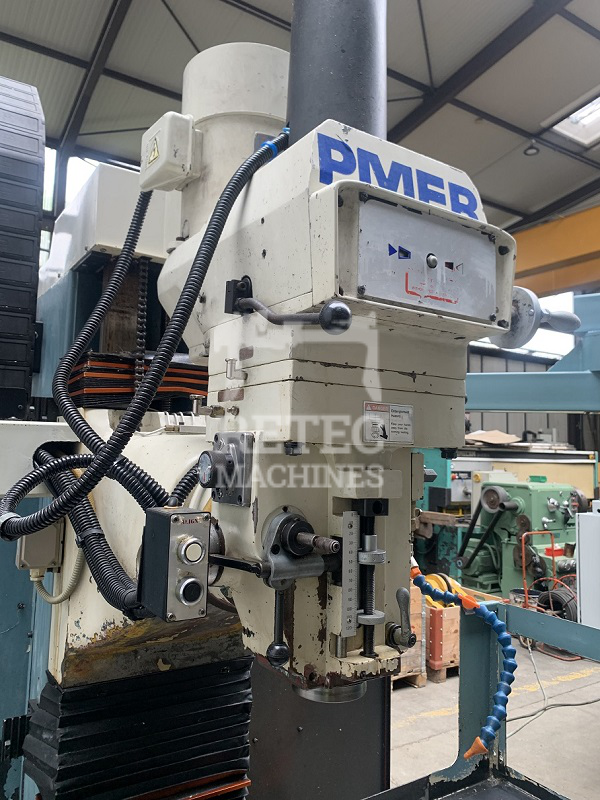

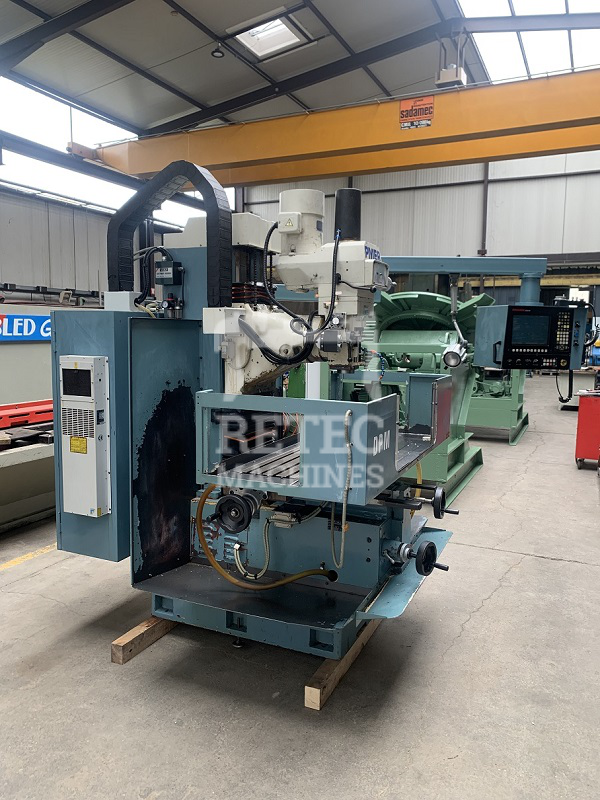

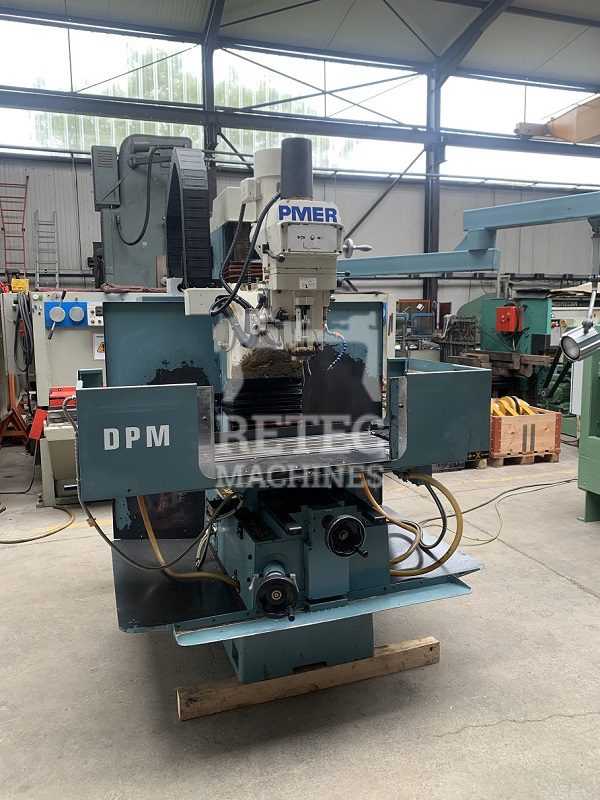

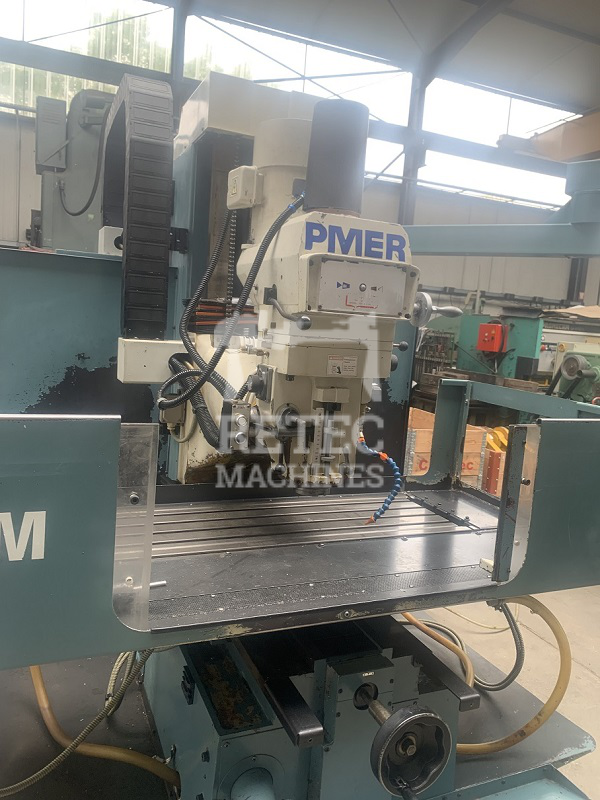

Fraiseuse CNC PMER type DPM
Fraiseuse CNC PMER type DPM
Fraiseuse CNC PMER type DPM
Fraiseuse CNC PMER type DPM
Fraiseuse CNC PMER type DPM
Fraiseuse CNC PMER type DPM
Fraiseuse CNC PMER type DPM
Fraiseuse CNC PMER type DPM
Fraiseuse CNC PMER type DPM
Fraiseuse CNC PMER type DPM
Fraiseuse CNC PMER type DPM
Fraiseuse CNC PMER type DPM

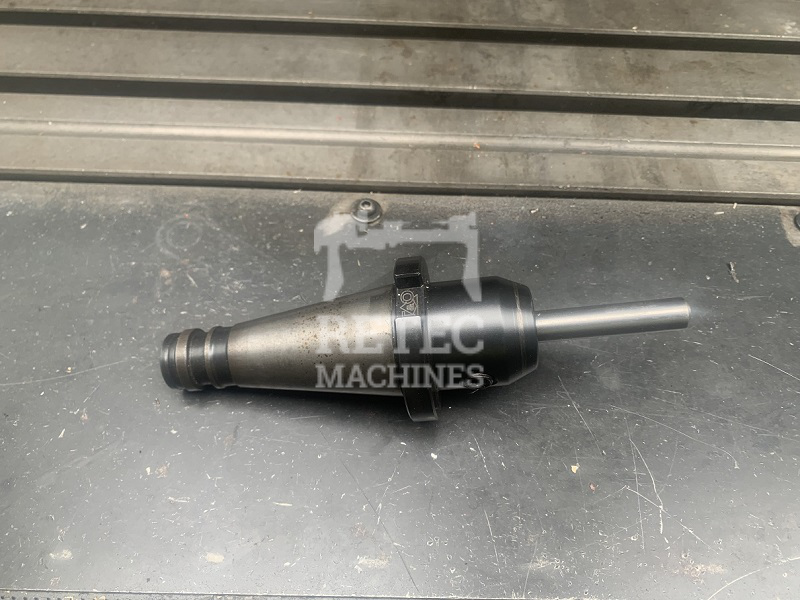

Fraiseuse CNC PMER type DPM - Cône

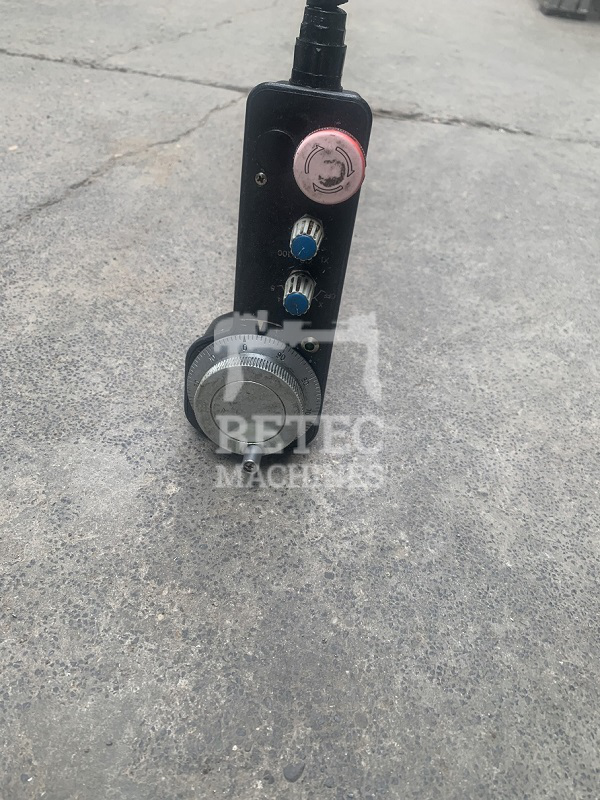

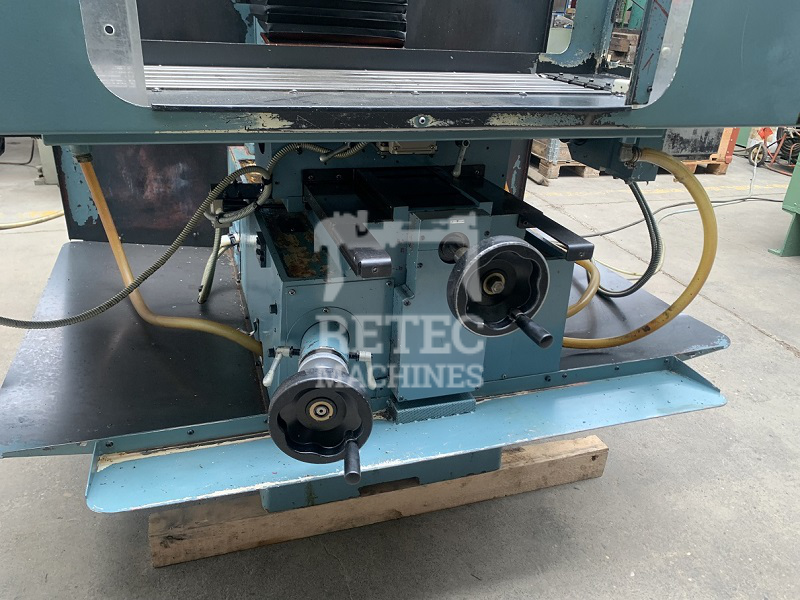

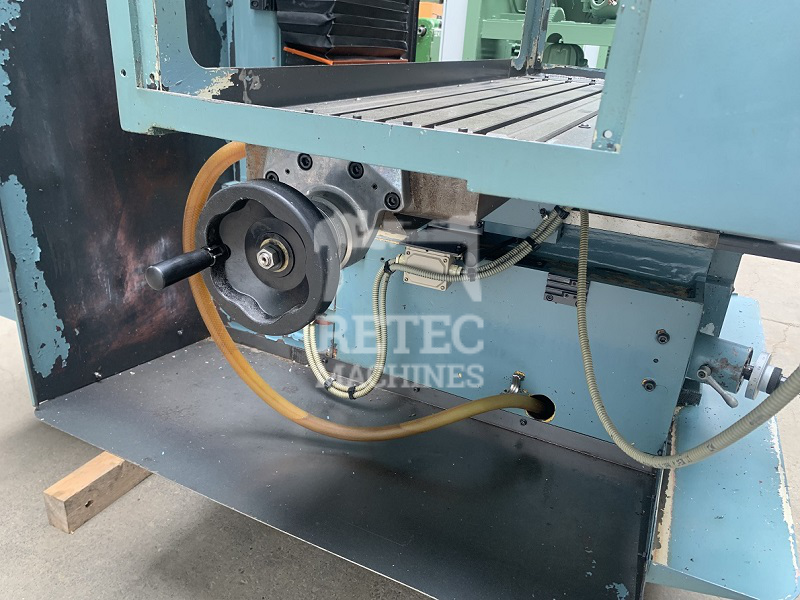

Fraiseuse CNC PMER type DPM - Jog

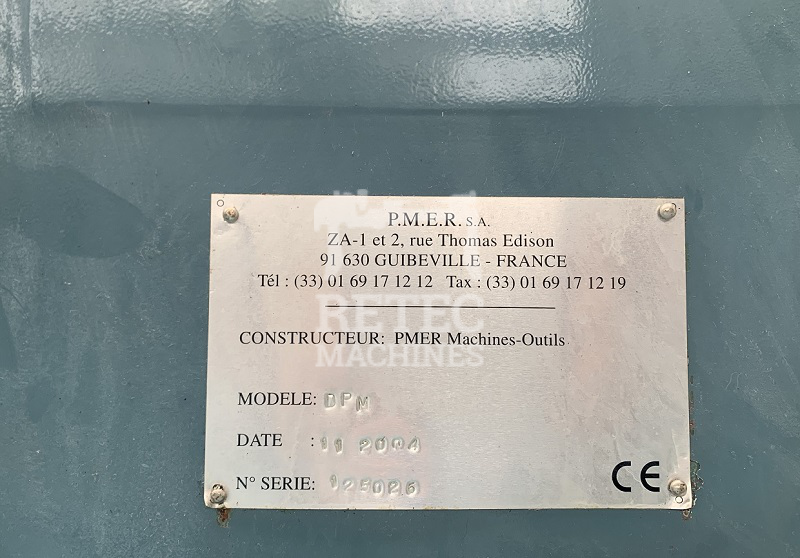

Fraiseuse CNC PMER type DPM - Plaque

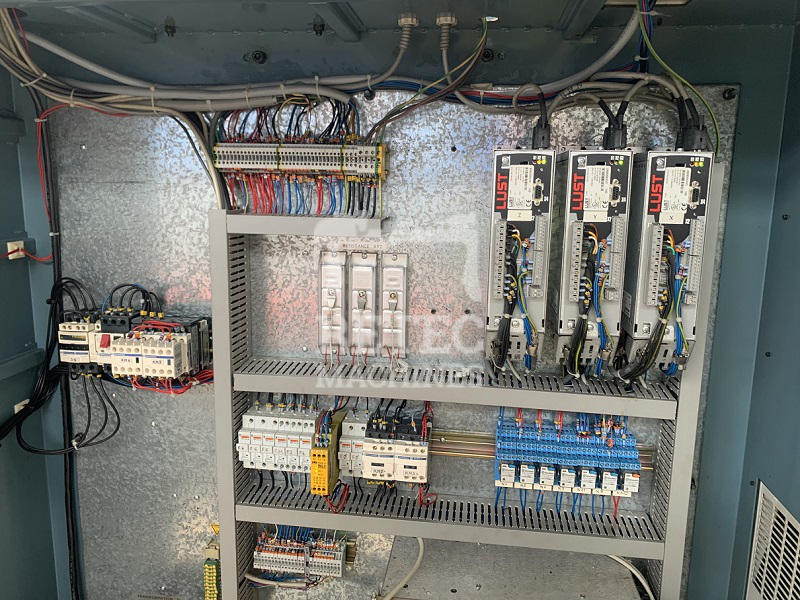

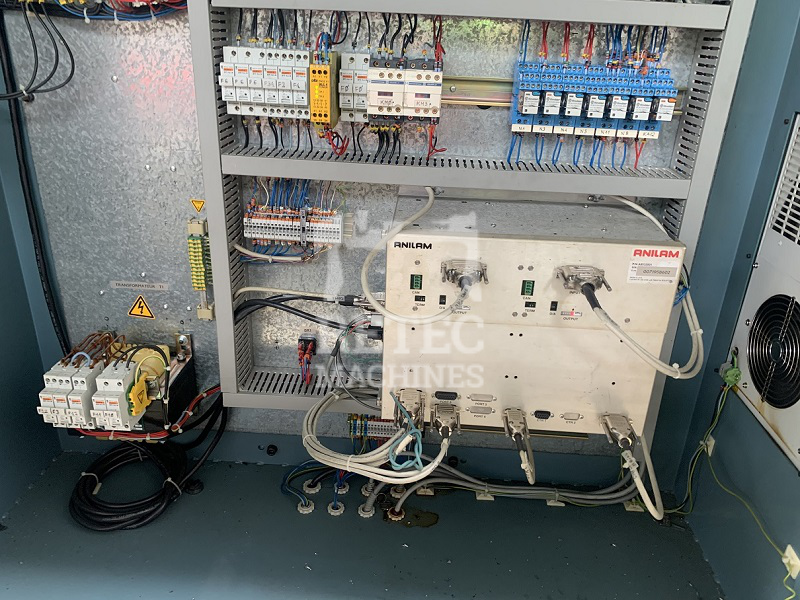

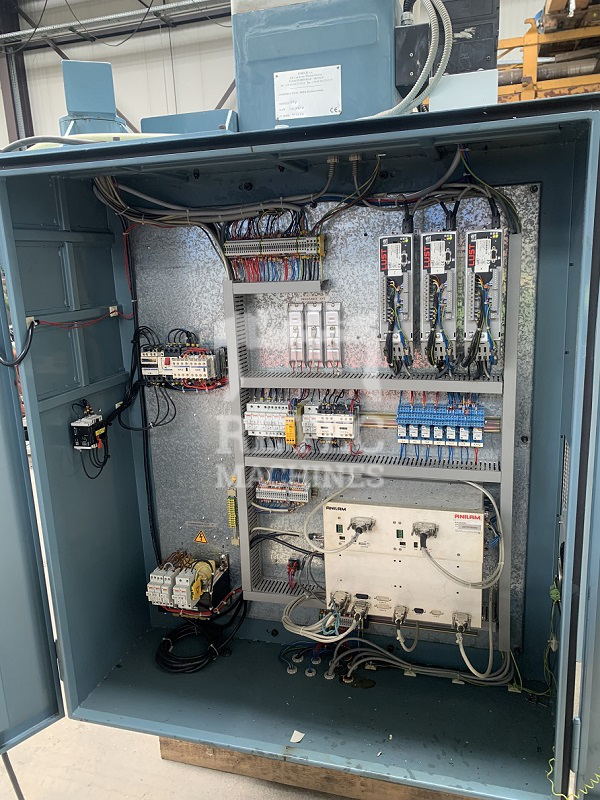

Fraiseuse CNC PMER type DPM - Armoire électrique
Fraiseuse CNC PMER type DPM - Armoire électrique
Fraiseuse CNC PMER type DPM - Armoire électrique

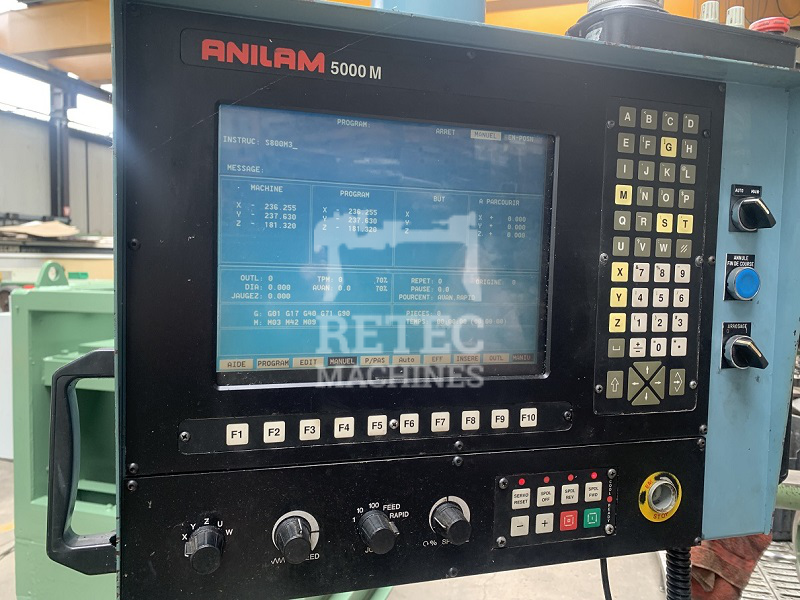

Fraiseuse CNC PMER type DPM - Commande Numérique

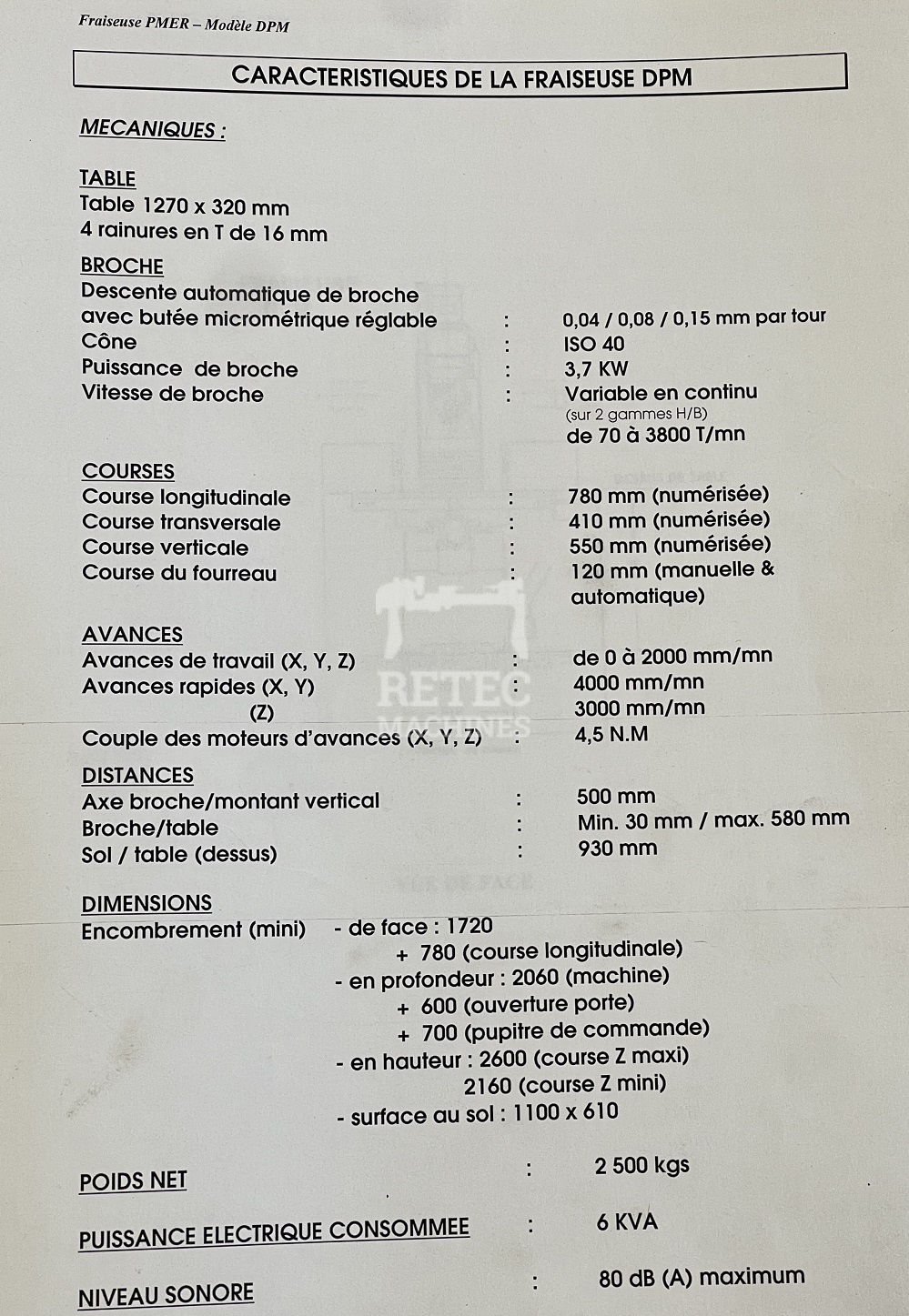

Fraiseuse CNC PMER type DPM - Détails techniques
