CNC Vertical Lathe BERTHIEZ TFM 125 - CN NUM 1040

VERTICAL LATHES

Search

Make

CNC Vertical Lathe BERTHIEZ TFM 125 - CN NUM 1040

Type

TFM 125

Description - CNC Vertical Lathe BERTHIEZ TFM 125 - CN NUM 1040

Denomination
CNC Vertical Lathe
Numerical Command
NUM 1040
Maxi turning diameter
Ø 1550 mm
Turning height
1000 mm
Vertical run of the slide
800 mm
Max turning height under crossbar
1280 mm
Speed ranges
2 speed ranges: 1 to 125 RPM - 1.6 to 200 RPM
Chuck
4-jaws chuck Ø 1250 mm
False platform diameter
Ø 1500 mm
Maxi loading capacity
maximum permissible weight on chuck: 10 T
Motor
22 kW
Various
Horizontal travel at right of chuck: 895 mm
Various
Horizontal travel at left of chuck: 935 mm
Various
Left coolant section: 180 x 180 mm
Various
Tool changer: non-functional
Equipped with
Chip Conveyor
Voltage
380 V
Weight
approx 20 T

Vidéo

Photos Gallery

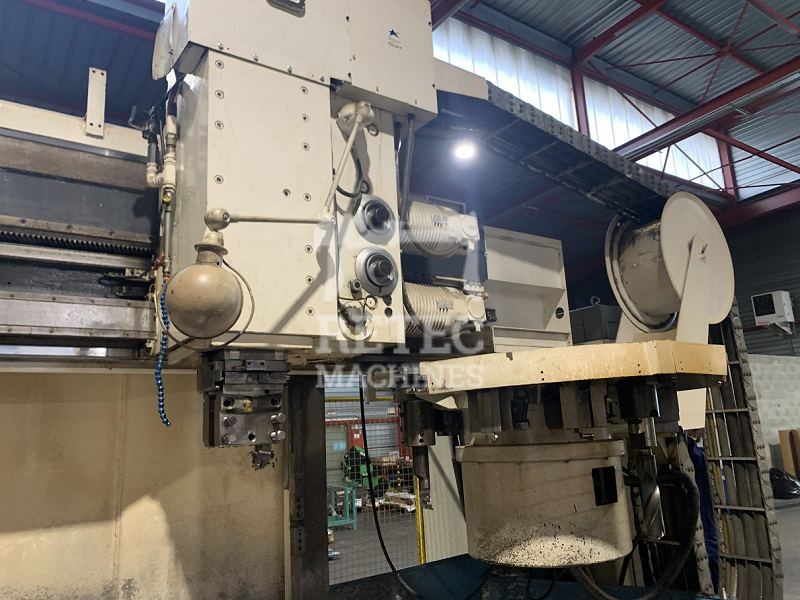

Tour vertical CNC BERTHIEZ TFM 125 - CN NUM 1040
Tour vertical CNC BERTHIEZ TFM 125 - CN NUM 1040
Tour vertical CNC BERTHIEZ TFM 125 - CN NUM 1040
Tour vertical CNC BERTHIEZ TFM 125 - CN NUM 1040
Tour vertical CNC BERTHIEZ TFM 125 - CN NUM 1040
Tour vertical CNC BERTHIEZ TFM 125 - CN NUM 1040
Tour vertical CNC BERTHIEZ TFM 125 - CN NUM 1040
Tour vertical CNC BERTHIEZ TFM 125 - CN NUM 1040
Tour vertical CNC BERTHIEZ TFM 125 - CN NUM 1040
Tour vertical CNC BERTHIEZ TFM 125 - CN NUM 1040
Tour vertical CNC BERTHIEZ TFM 125 - CN NUM 1040
Tour vertical CNC BERTHIEZ TFM 125 - CN NUM 1040
Tour vertical CNC BERTHIEZ TFM 125 - CN NUM 1040
Tour vertical CNC BERTHIEZ TFM 125 - CN NUM 1040
Tour vertical CNC BERTHIEZ TFM 125 - CN NUM 1040
Tour vertical CNC BERTHIEZ TFM 125 - CN NUM 1040 - Mandrin
Tour vertical CNC BERTHIEZ TFM 125 - CN NUM 1040 - Armoire électrique
Tour vertical CNC BERTHIEZ TFM 125 - CN NUM 1040 - Armoire électrique
Tour vertical CNC BERTHIEZ TFM 125 - CN NUM 1040 - Armoire électrique
Tour vertical CNC BERTHIEZ TFM 125 - CN NUM 1040 - Armoire électrique
Tour vertical CNC BERTHIEZ TFM 125 - CN NUM 1040 - CNC
Tour vertical CNC BERTHIEZ TFM 125 - CN NUM 1040 - CNC
Tour vertical CNC BERTHIEZ TFM 125 - CN NUM 1040 - Détails techniques
Tour vertical CNC BERTHIEZ TFM 125 - CN NUM 1040 - Détails techniques
