PROFIL PROJECTORS

Optical Profile Projector BATY SM20 XL2

PROFIL PROJECTORS

Search

Make

Optical Profile Projector BATY SM20 XL2

Type

SM20 XL2

Description - Optical Profile Projector BATY SM20 XL2

Denomination

Optical Profile Projector

Table size

Length 320 mm x Width 180 mm

Scale

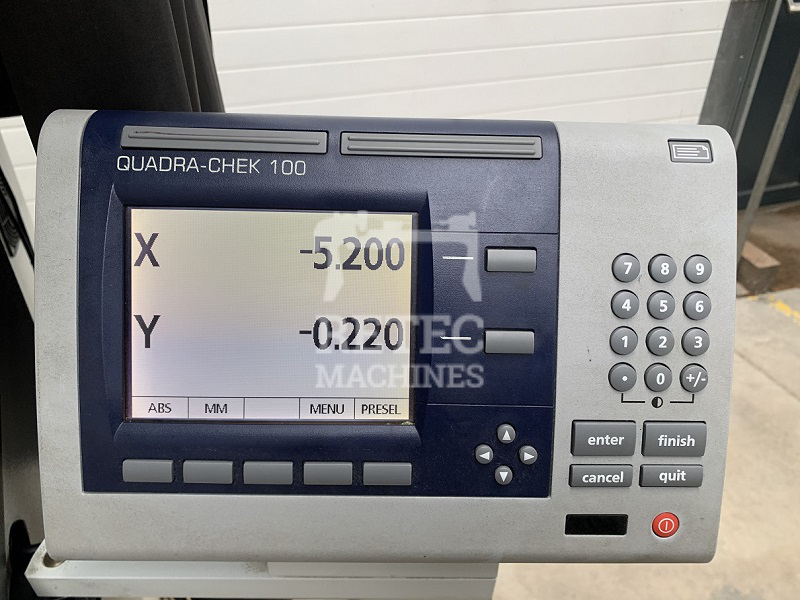

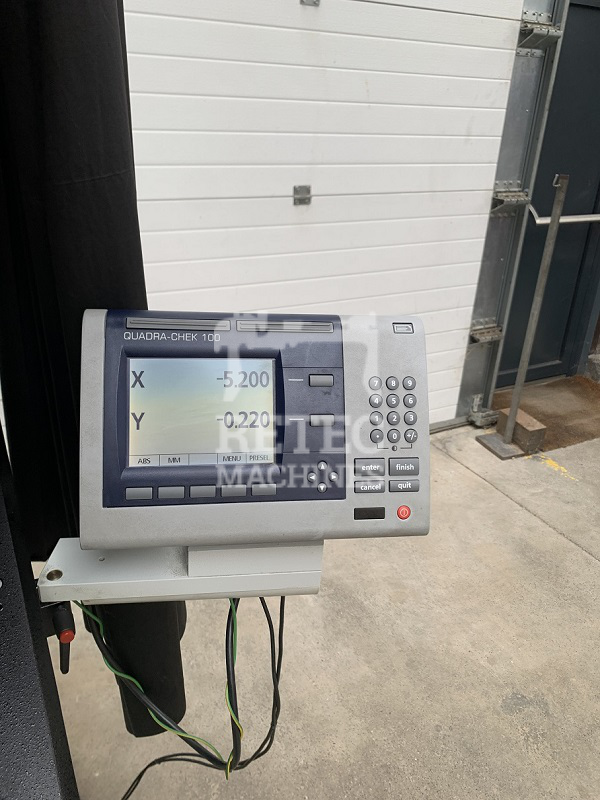

QUADRA-CHEK 100

Screen

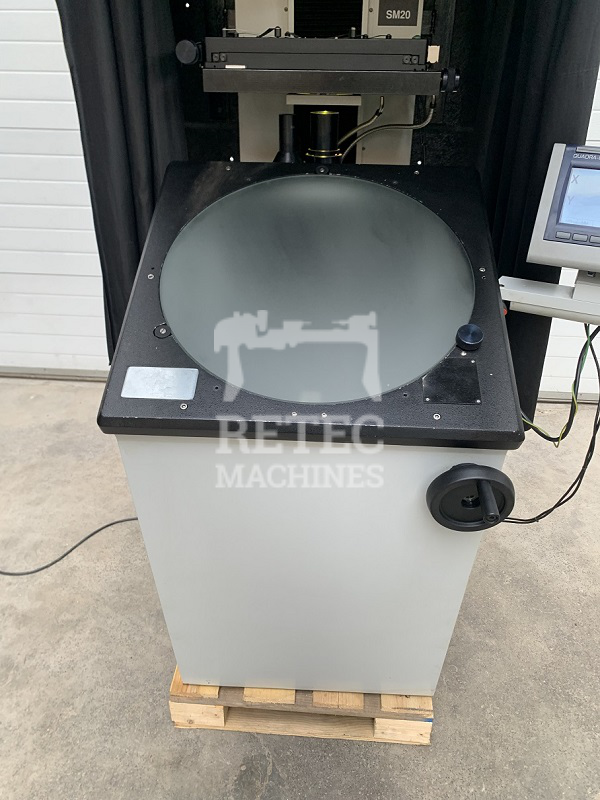

Ø 500 mm

Various

Visualized X - Y-Axes

Various

Machine in VERY GOOD CONDITION

Equipped with

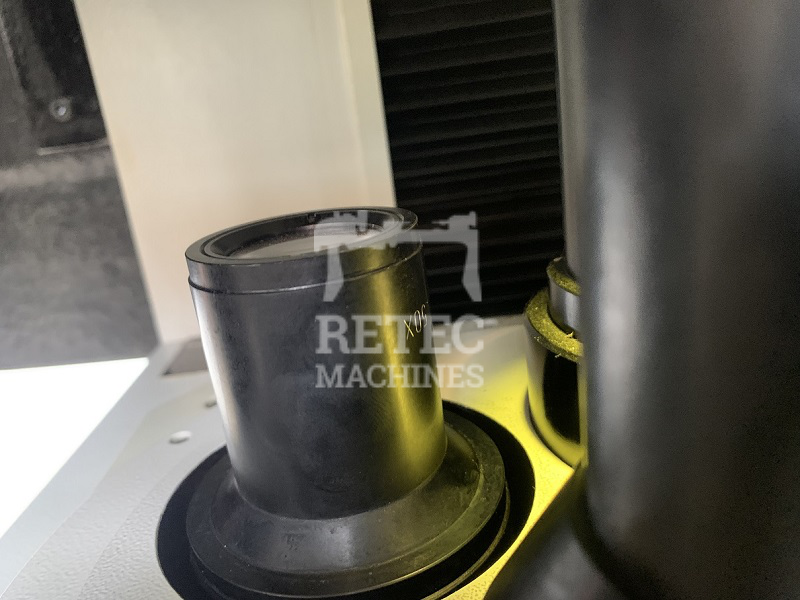

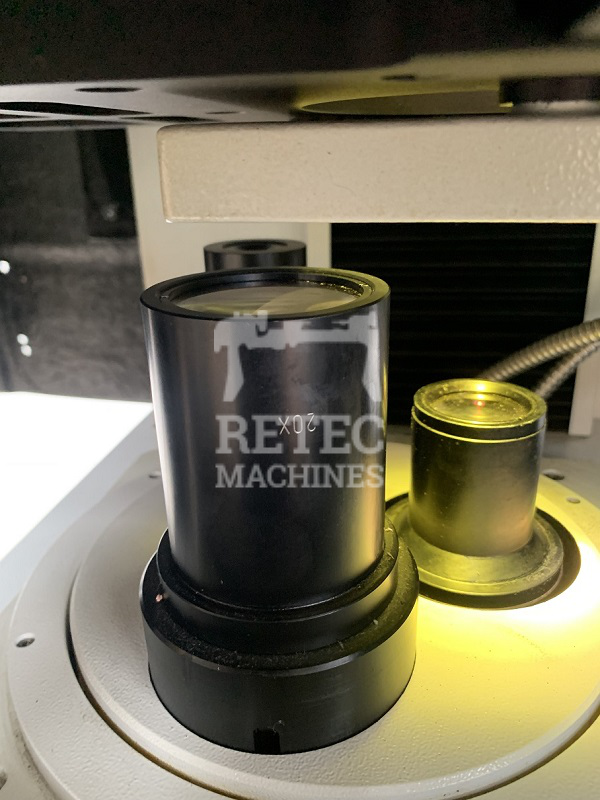

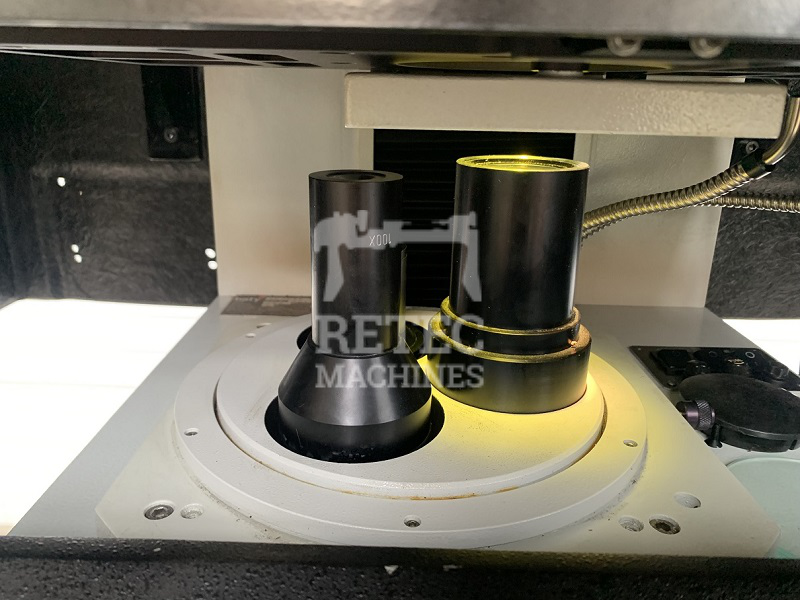

1 optical magnifier 20 x

Equipped with

1 optical magnifier 50 x

Equipped with

1 optical magnifier 100 x

Voltage

220 V mono

Width

1300 mm

Depth

1200 mm

Total height

with cover: 2000 mm

Weight

approx 200 KG

Photos Gallery

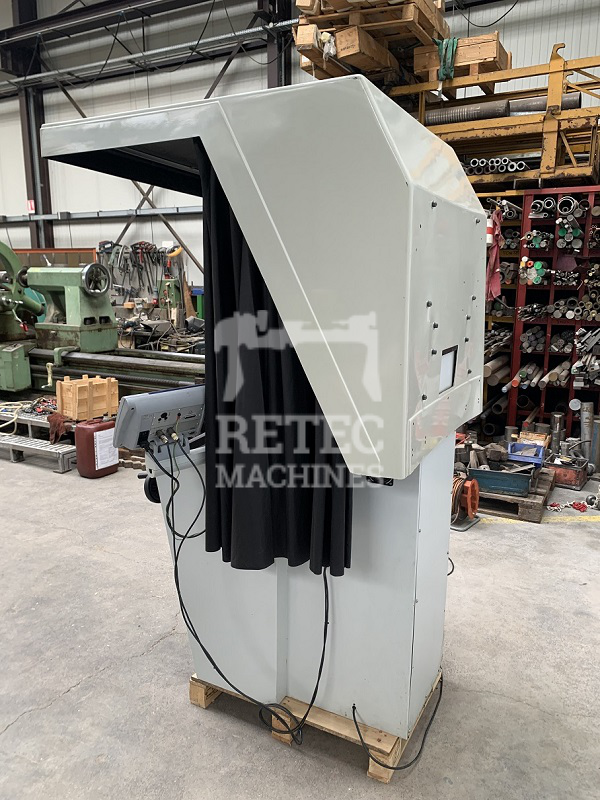

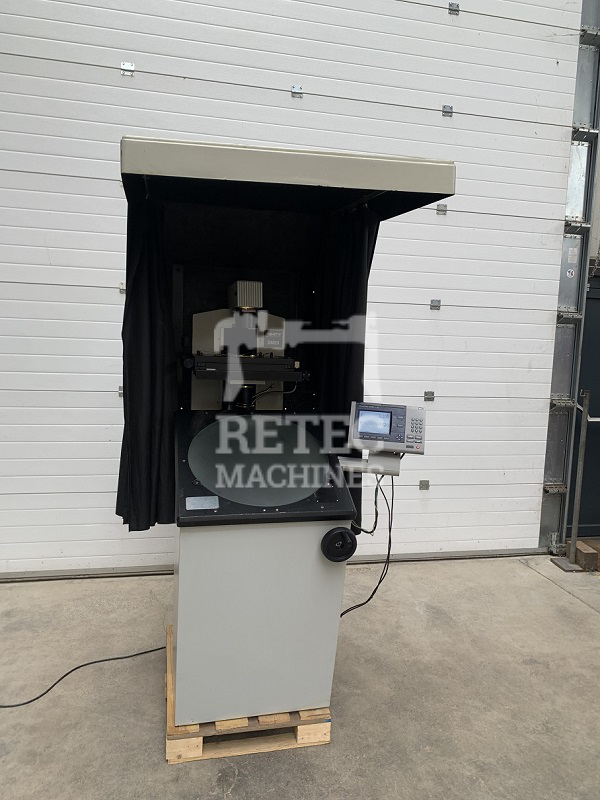

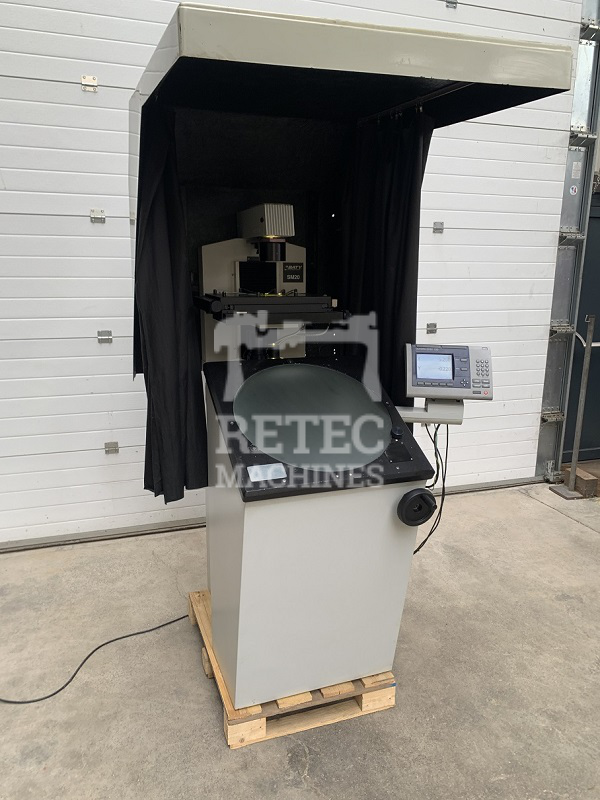

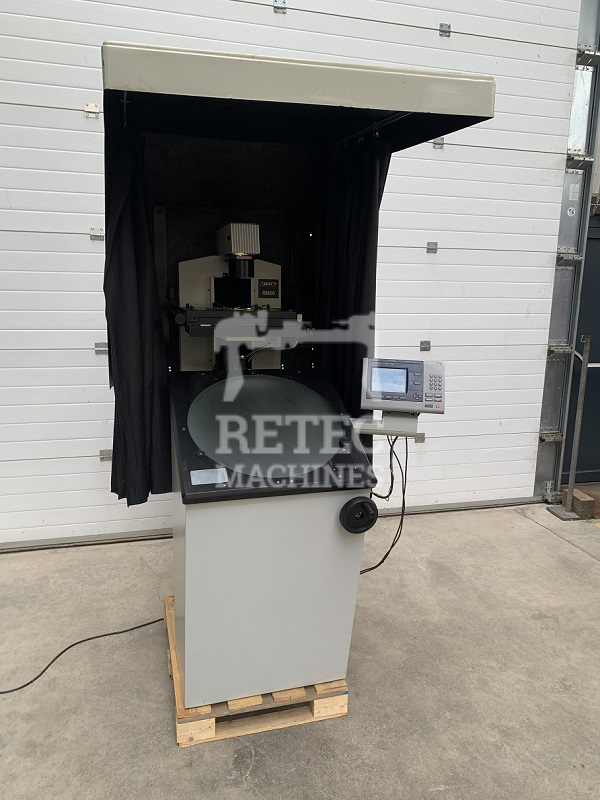

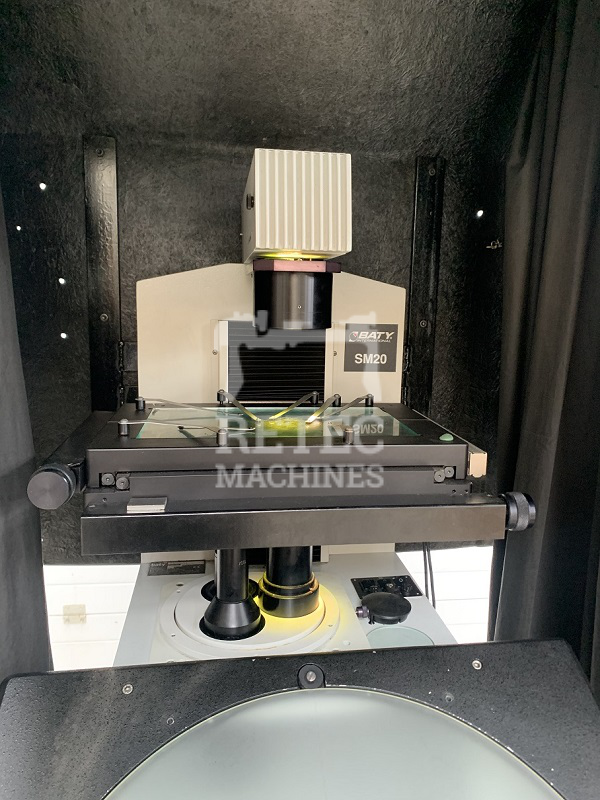

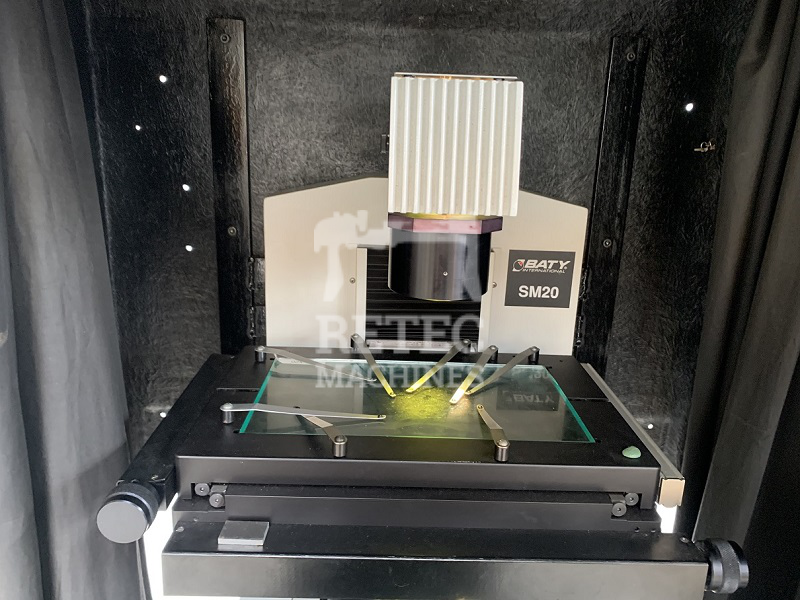

Projecteur de profil BATY type SM20 XL2

Projecteur de profil BATY type SM20 XL2

Projecteur de profil BATY type SM20 XL2

Projecteur de profil BATY type SM20 XL2

Projecteur de profil BATY type SM20 XL2

Projecteur de profil BATY type SM20 XL2

Projecteur de profil BATY type SM20 XL2

Projecteur de profil BATY type SM20 XL2

Projecteur de profil BATY type SM20 XL2

Projecteur de profil BATY type SM20 XL2

Projecteur de profil BATY type SM20 XL2

Projecteur de profil BATY type SM20 XL2

Projecteur de profil BATY type SM20 XL2

Projecteur de profil BATY type SM20 XL2
